Outdoor Residential Access Control Barrier Gate 140W For Secure Parking

Brand Name:	CBG
Model Number:	18B-ZY
MOQ:	2 pieces
Price:	$360.00/pieces 2-99 pieces

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Document:

Working Temperature:

-30-60℃

Power Supply:

Usage:

Outdoor

Boom Barrier Length:

1.5-6M

Work Voltage:

DC-24V

Feature:

Waterproof

Operating Speed:

0.3-6s(Depend On Arm Length)

Insulation Level:

Operating Life:

>5 Million

Warranty:

2 Years

Highlight:

Residential Access Control Barrier Gate

Access Control Barrier Gate 140W

140W Secure Parking Barrier Gate

Product Description

140W Power Supply Outdoor Residential Access Control Barrier Gate For Secure Parking

Product Description

Overview

Company Profile

Product description

A boom barrier is designed for a range of max opening up to 6m. It is ideal solution for controlling vehicle traffic in parking lots, private entrances, industrial and public uses.
As a manufacturer, we have more than 10 year experiences on designing, producing and installing boom barriers. We have good quality control, so we vigorously test our boom barriers to make sure a longer life span.

Application:

Office Buildings.
Shopping and mall Centers.
Vehicle Parks.
Distribution and Warehouse Facilities.
Commercial and Industrial Facilities.
Government Buildings.

Stations

Features

1)The movement adopts side stick installation, which is convenient for installation and compact in structure.
2) When power off, we can lift up the boom arm by hand directly
3)The main body of the movement is made of aluminum alloy, which is made by die-casting process, with reliable mechanical strength and beautiful appearance view, accurate size, good heat dissipation.
4)The core adopts gear reducer, which has high transmission efficiency and small power output loss; gear material quality scm421,carburizing heat treatment process, precision grinding, wear resistance, impact resistance, service life far beyond worm gear transmission structure.
5)The core adopts DC brushless motor, with large output torque and small volume, which can be realized by controller the speed can be adjusted at will. When the lowering and lifting poles are in place, the deceleration buffer can be realized to make the brake poles in place stably.
6)DC24V safety voltage is adopted for the motor to avoid electric shock accident caused by electric leakage and personal injury safety is more guaranteed.

Parameters

Technical Parameters
Size	250300990mm
Power supply	DC 24V
Open/close speed	0.3s to 6s
Working temperature	-30~60℃
Rated power	140w
Motor rated speed	1500r/min
Humidity	<=85%
Remote control distance	30 m
Max boom length	6m
External power	220V 50/60HZ

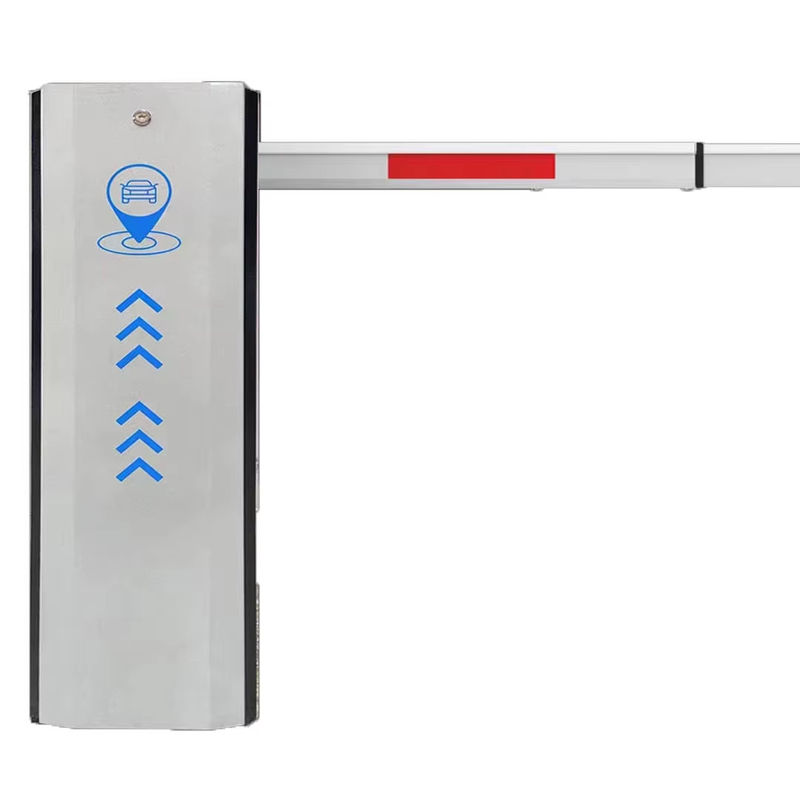

Product picture

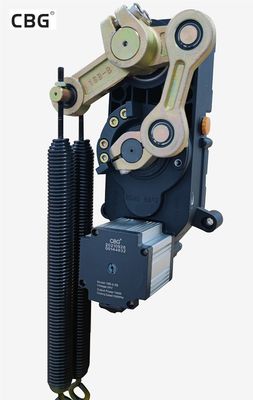

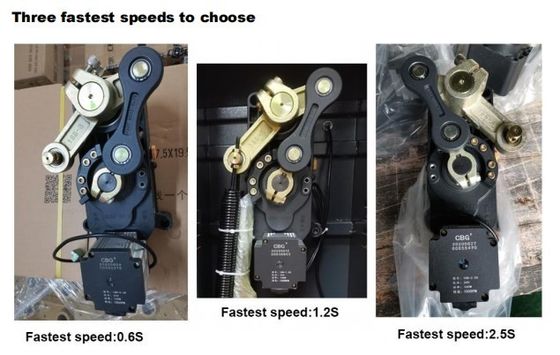

interior structure:

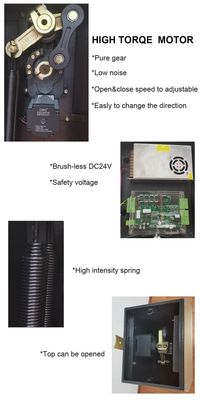

Big torque motor

Collision resistant motor

Toll station motor

MCBF more 5 million times

Fast response

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Boom barrier projects

Exhibition

Certification
