Vehicle Entrance Barrier Gate For Commercial Industrial Facilities Parking Lots

Brand Name:	CBG
Model Number:	18B-ZY
MOQ:	2 pieces
Price:	$360.00/pieces 2-99 pieces

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Document:

Working Temperature:

-30-60℃

Power Supply:

Operating Speed:

0.3-6s(Depend On Arm Length)

Operating Life:

>5 Million

Warranty:

2 Years

Brand Name:

Packaging Details:

Carton Box

Highlight:

Vehicle Entrance Barrier Gate

Commercial Entrance Barrier Gate

Industrial Entrance Barrier Gate

Product Description

Vehicle Entrance Barrier Gate For Commercial And Industrial Facilities Parking Lots

Product Description

Operating
The Barrier Gate consists of a boom arm fixed on a fixed point. It has an DC motor, gearbox, locking plunger and balancing springs. The DC motor is powerful and can lift the installed boom arm, which moves in a vertical direction. By powering the motor, the motor rotates the gearbox, which in turn moves the counterweight channel from a horizontal position to a vertical position, and vice versa.
The transmission has the characteristics of strong heat dissipation, balance spring so that the stop arm does not fall, locking plunger can enter the locking device smoothly and freely, the length of the boom arm is 2 meters, 3 meters, 4 meters, 5 meters, 6 meters, the working temperature is -40 °C to +60°C, can be applied to different climate areas, the working voltage is 110V to 220V, The baffle arm has many types, such as straight arm, folding arm, fence arm, advertising type and so on.

Company Profile

Product description

1.-The traffic barrier is widely used for the facilities of parking, traffic or toll system.
2.-Arms can be chosen from 1.5 meters to 6 meters.
3.-This type of barrier could match with direct boom( pole), fold boom Or fence boom..
4.When power off, we can lift up the boom arm by hand directly
5.-All the process is soft without any noise and shaking.
6.-Housing color: yellow,red ,blue,black,white (optional)
8.-Boom arm direction can be chosen leftward to rightward.
8.-Auto warming up,suitable for cold environment.

Application:

Office Buildings.
Shopping and mall Centers.
Vehicle Parks.
Distribution and Warehouse Facilities.
Commercial and Industrial Facilities.
Government Buildings.

Stations

Parameters

Technical Parameters
Size	3302701020mm
Power supply	DC 24V
Open/close speed	0.3s to 6s
Working temperature	-30~60℃
Rated power	140w
Motor rated speed	1500r/min
Humidity	<=85%
Remote control distance	30 m
Max boom length	6m
External power	220V 50/60HZ

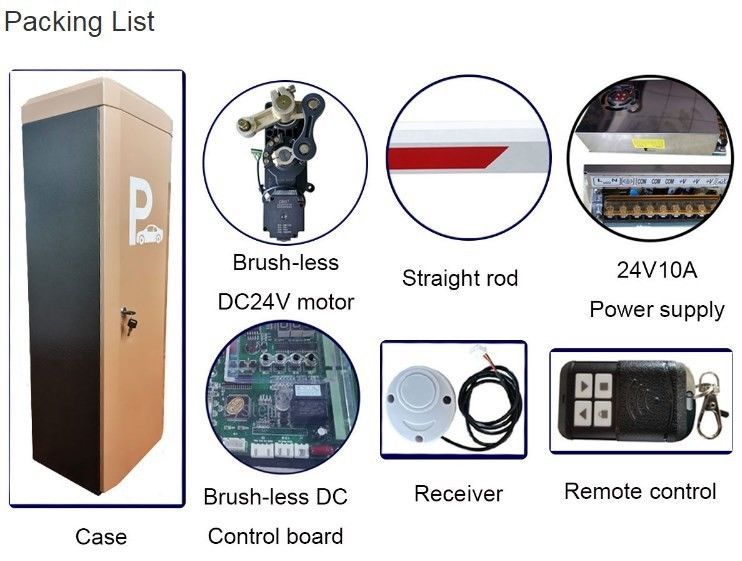

Product picture

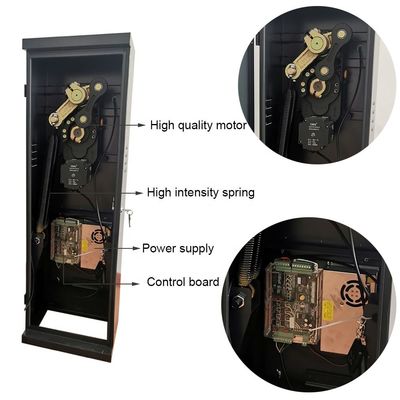

interior structure:

Big torque motor

Collision resistant motor

Toll station motor

MCBF more 5 million times

Fast response

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Boom barrier projects

Exhibition

Certification

FAQ

FAQ1. who are we? We are based in Guangdong, China, start from 2010,sell to Africa(2.00%). There are total about 101-200 people in our office. 2. how can we guarantee quality? Always a pre-production sample before mass production; Always final Inspection before shipment; 3.what can you buy from us? boom barrier,DC motor,gate road motor,car park barrier 4. why should you buy from us not from other suppliers? We're the manufacturer of boom barrier mechanism in China more than 10 years. The current is more than 100 staffs and 3 factories.We has professional equipment, assembly line production and quality assurance. We can customize according to customer needs. 5. what services can we provide? Accepted Delivery Terms: FOB,EXW； Accepted Payment Currency:USD,EUR; Accepted Payment Type: T/T,PayPal,Cash; 6.Do you suppply the sample? Yes, we provide the sample,but you have to pay the sample cost and courier cost.
